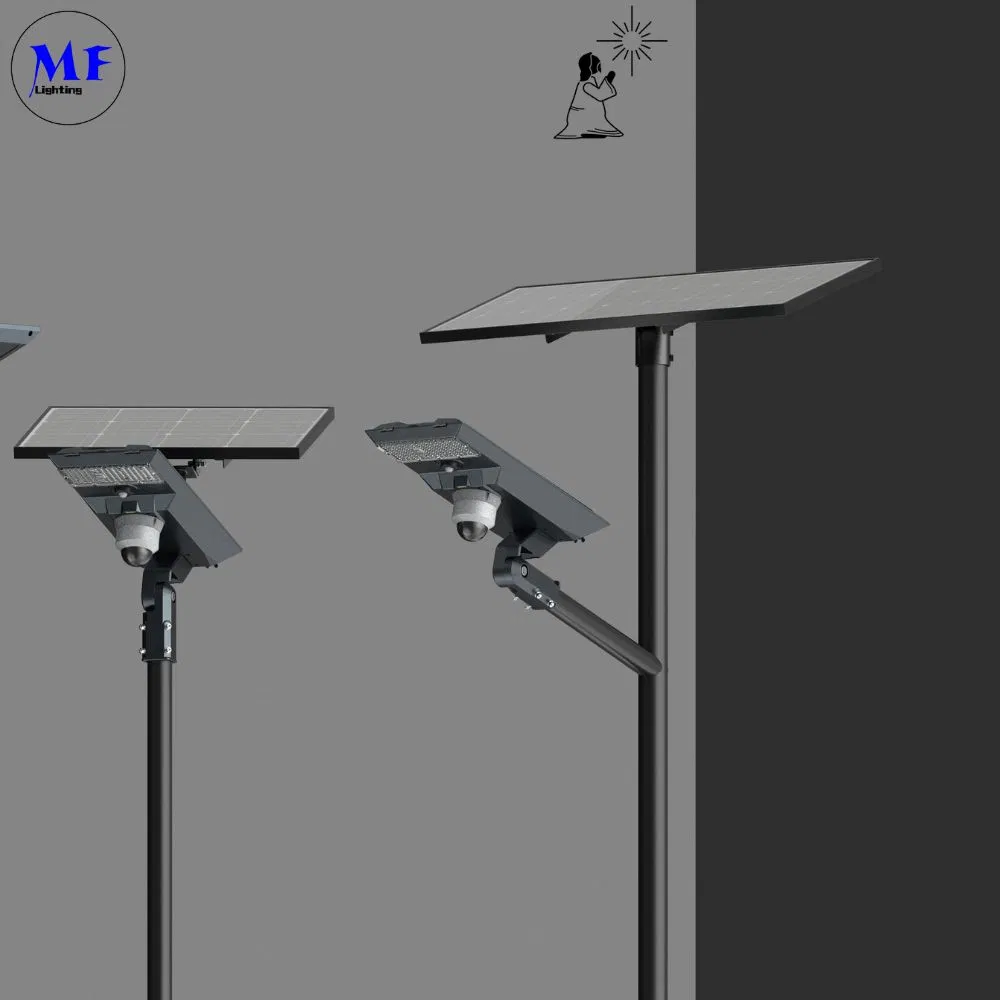

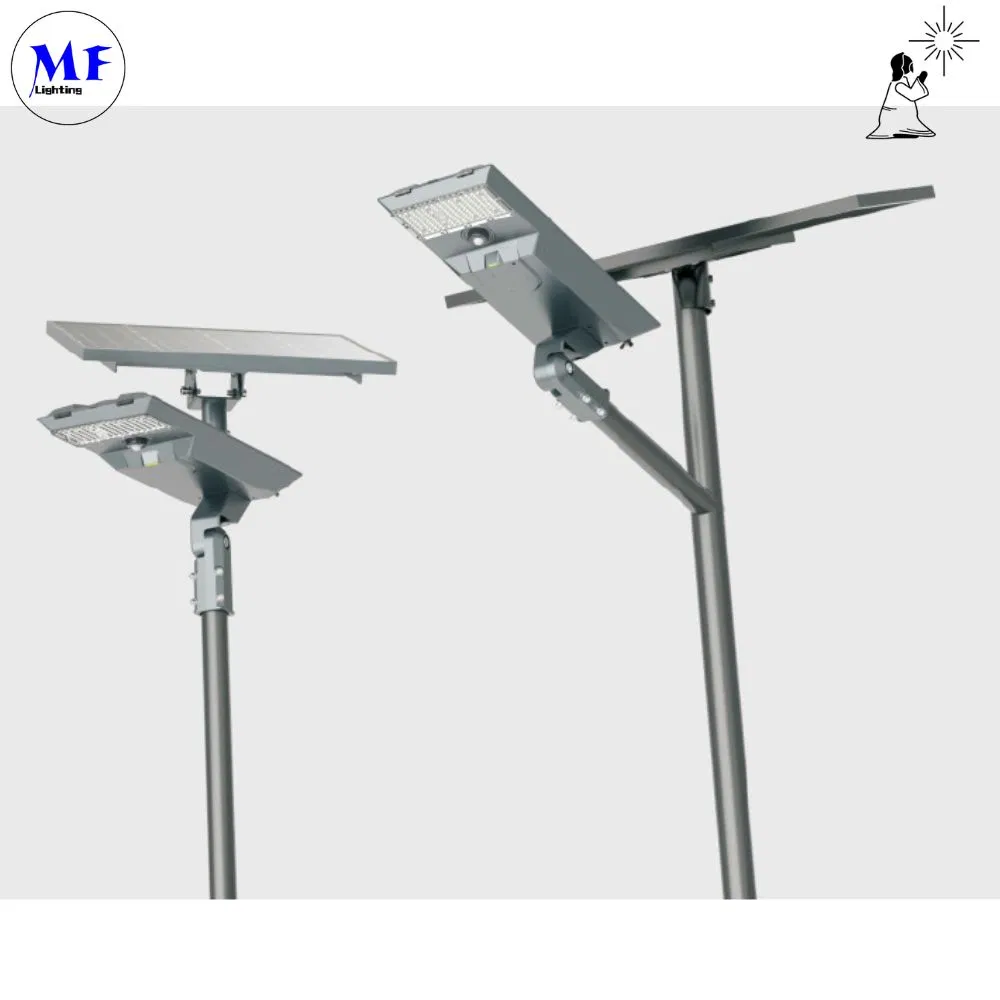

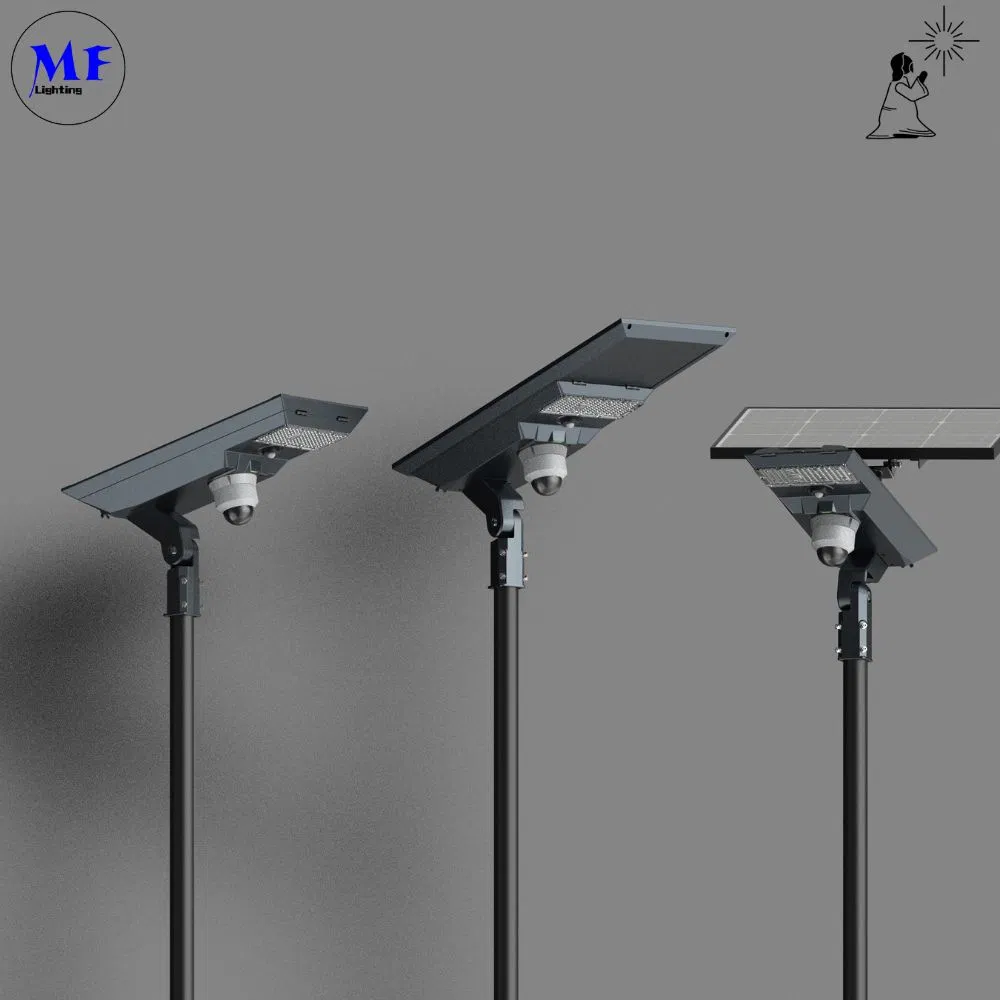

60W Solar Light IR/Motion Sensor Security Camera IP66 Waterproof Weather Resistant COB SMD Integrated Outdoor Parking light Solar Street Light

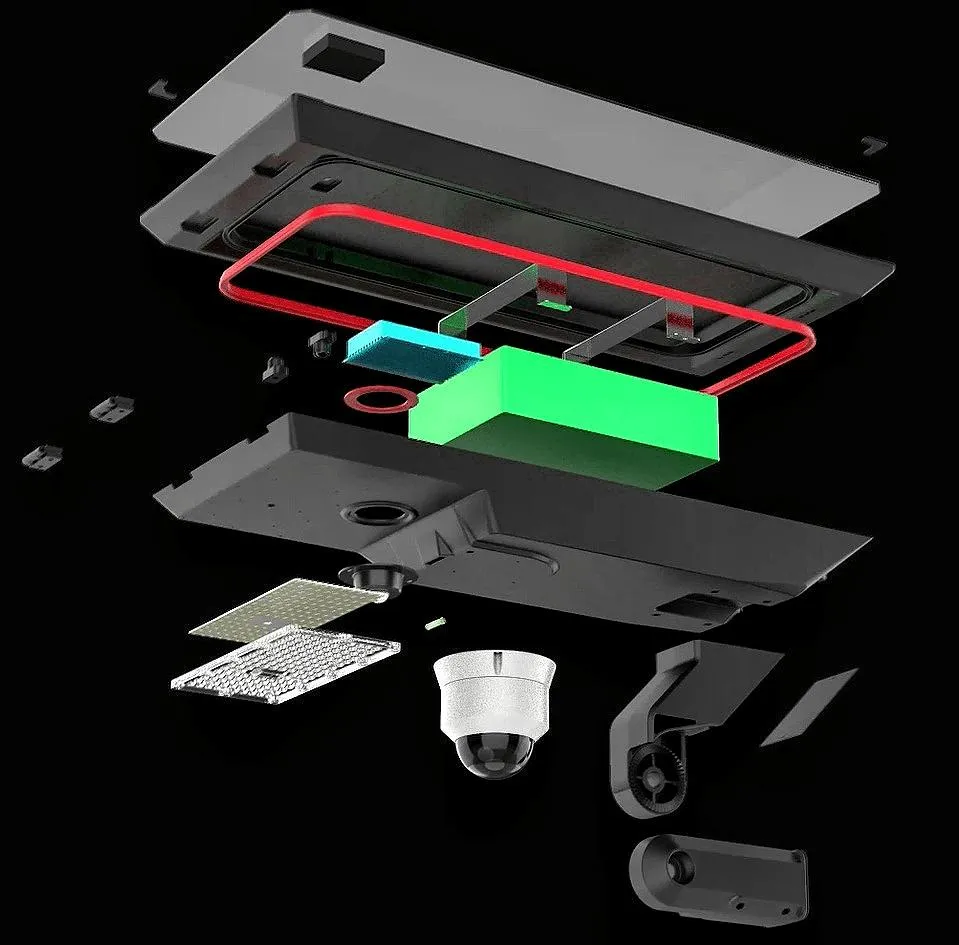

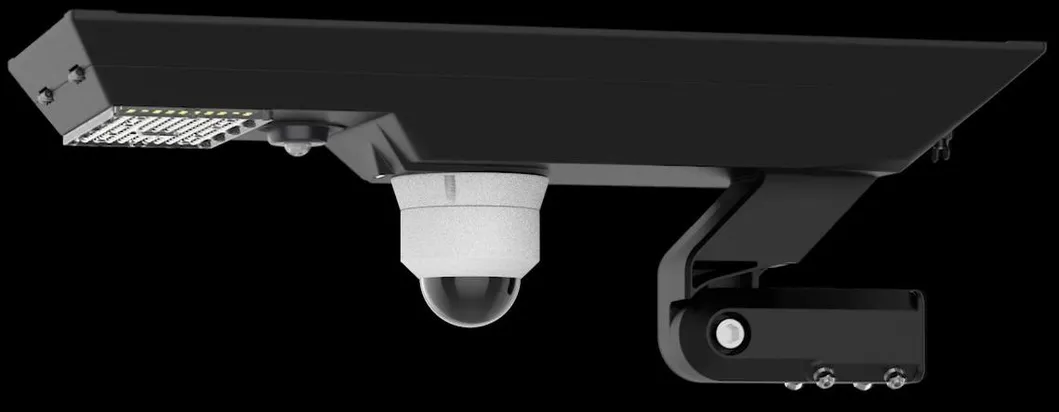

Integrated Die-casting cavity, Tool-free access

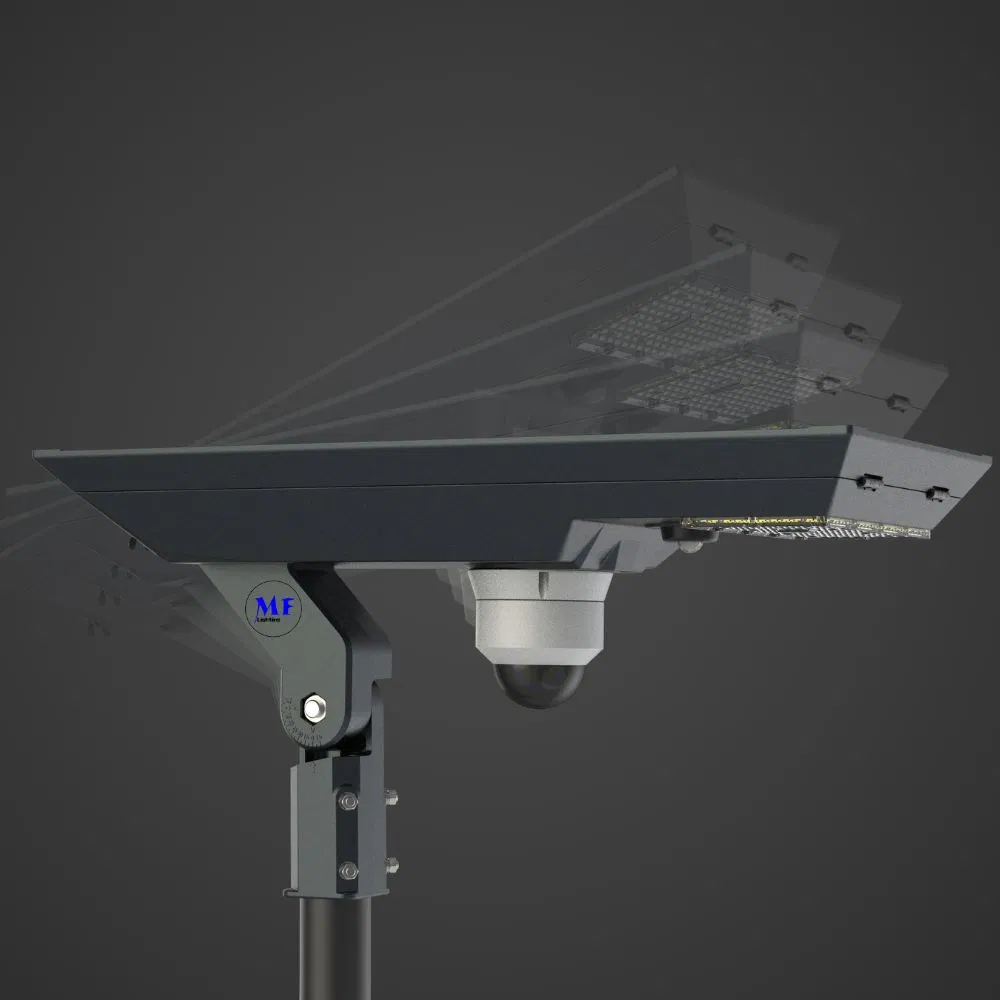

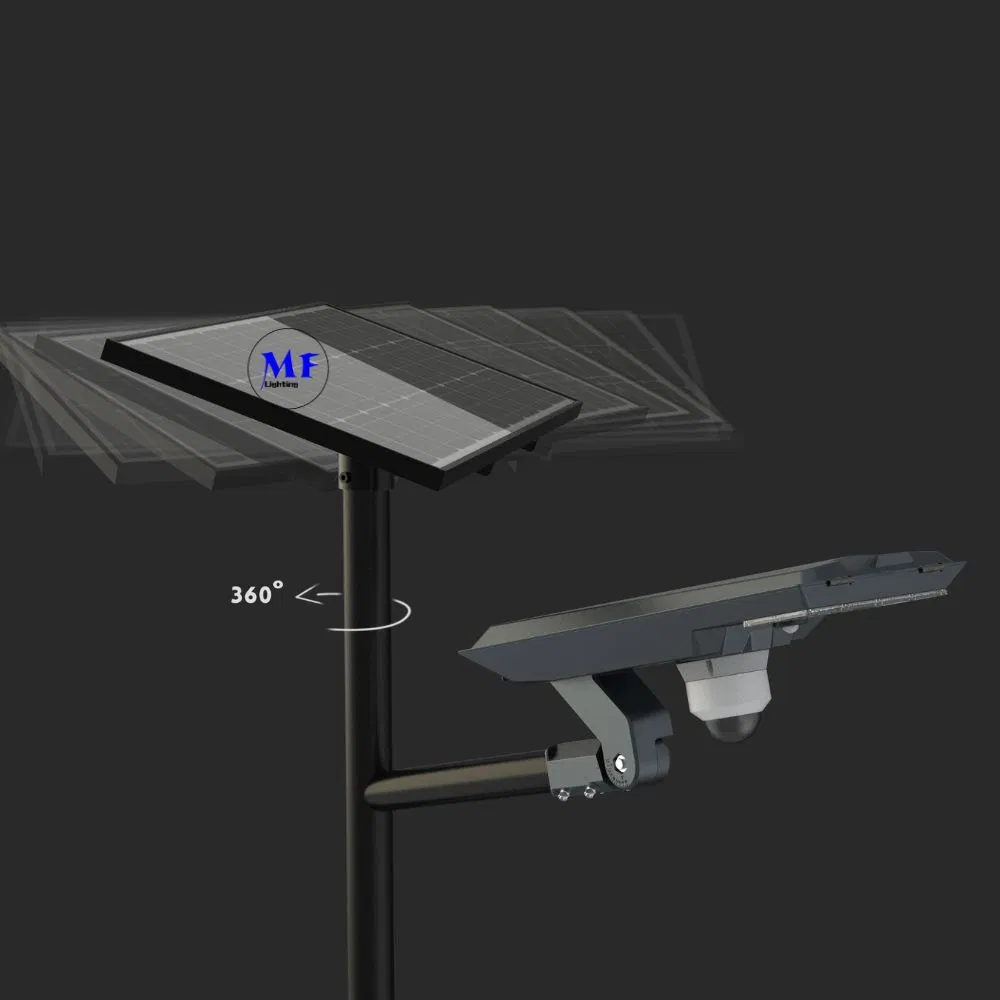

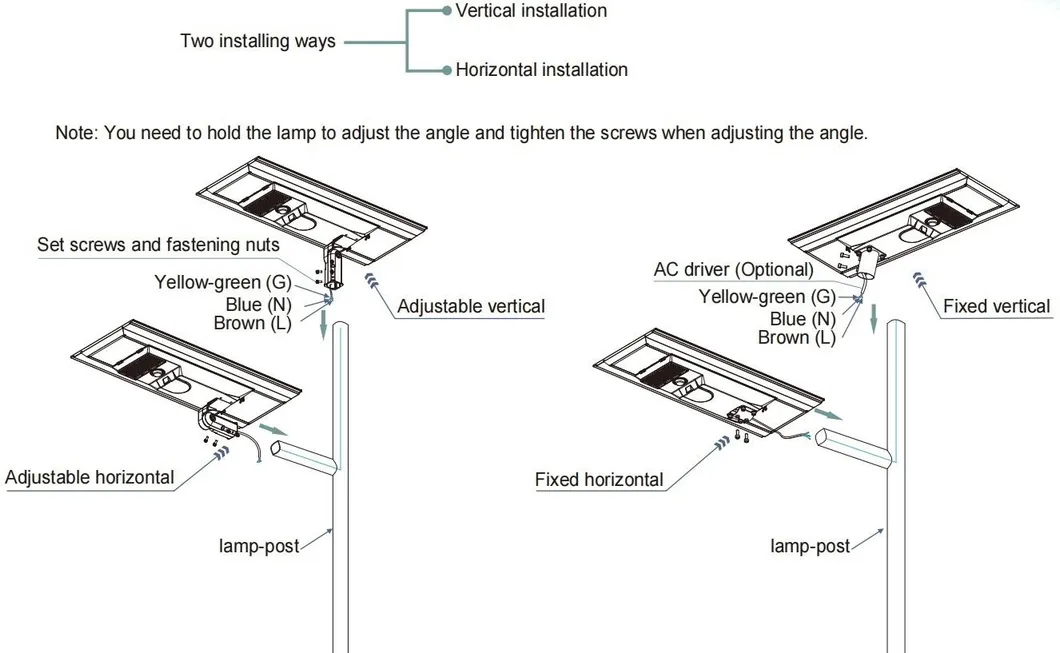

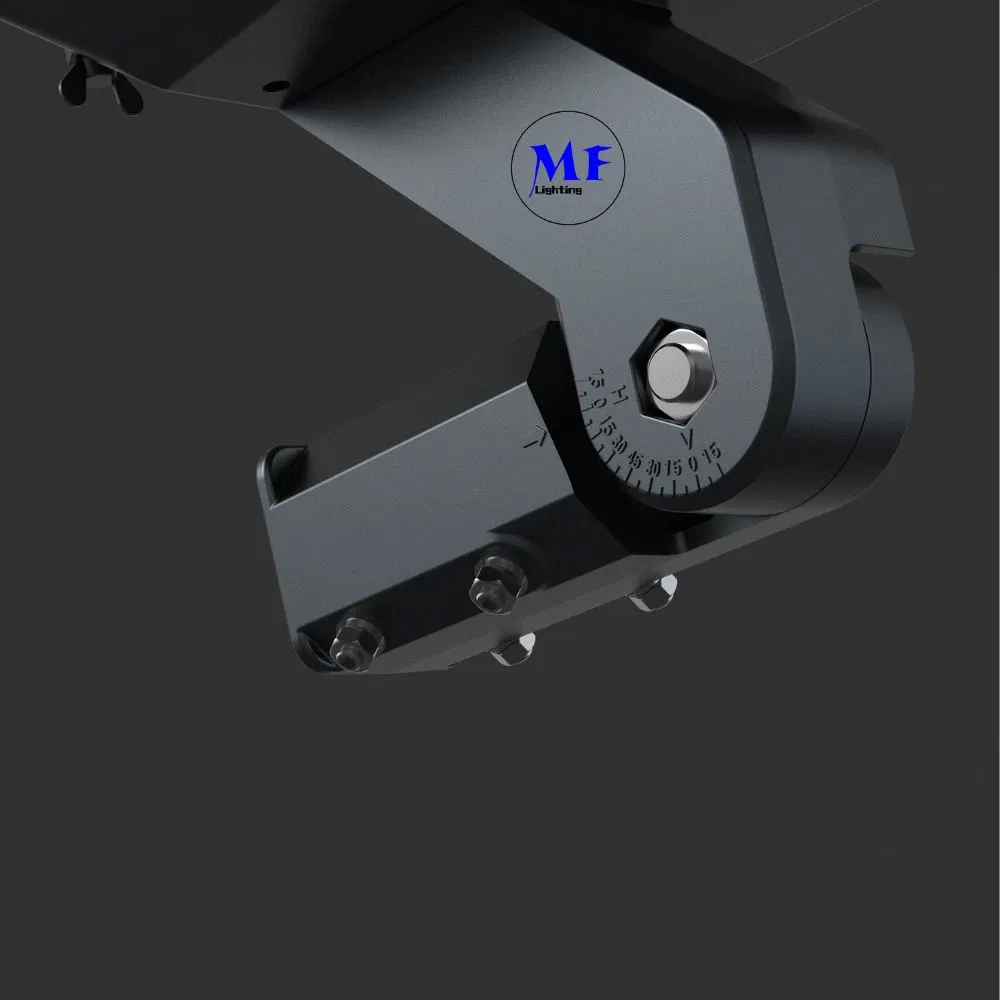

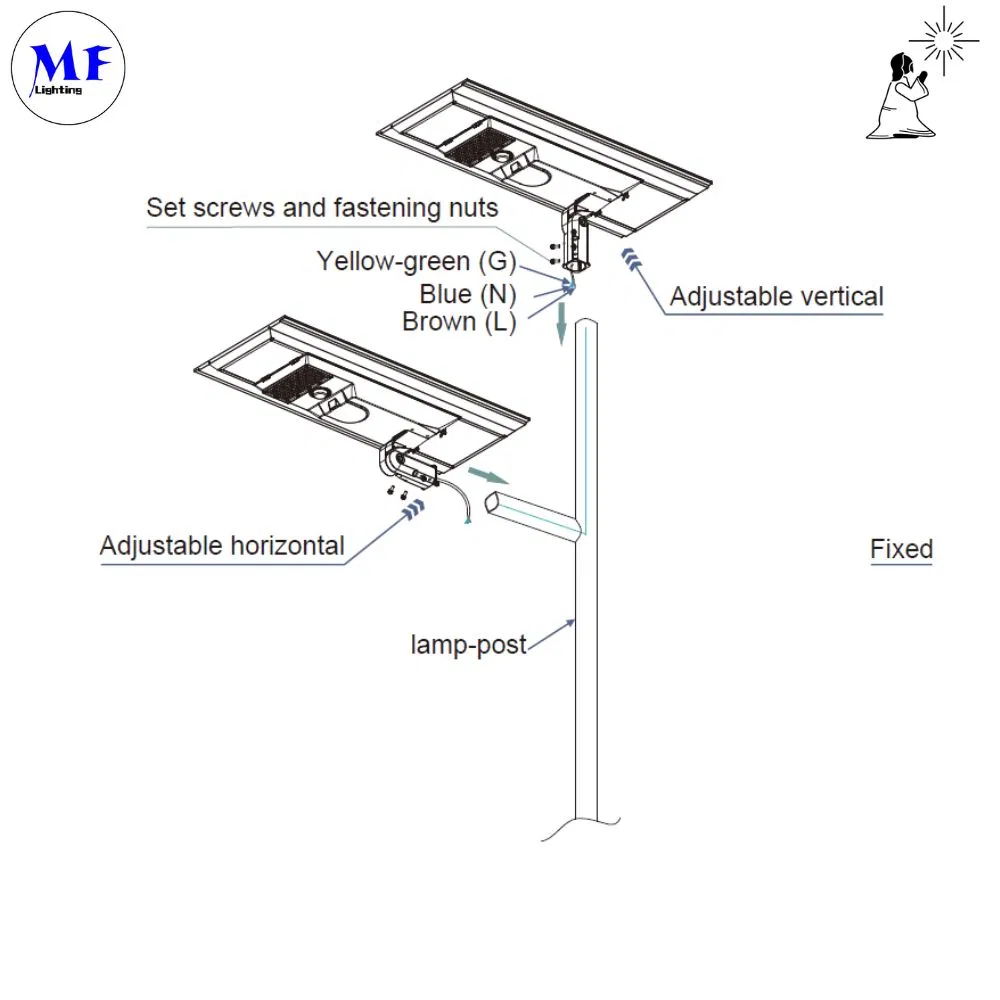

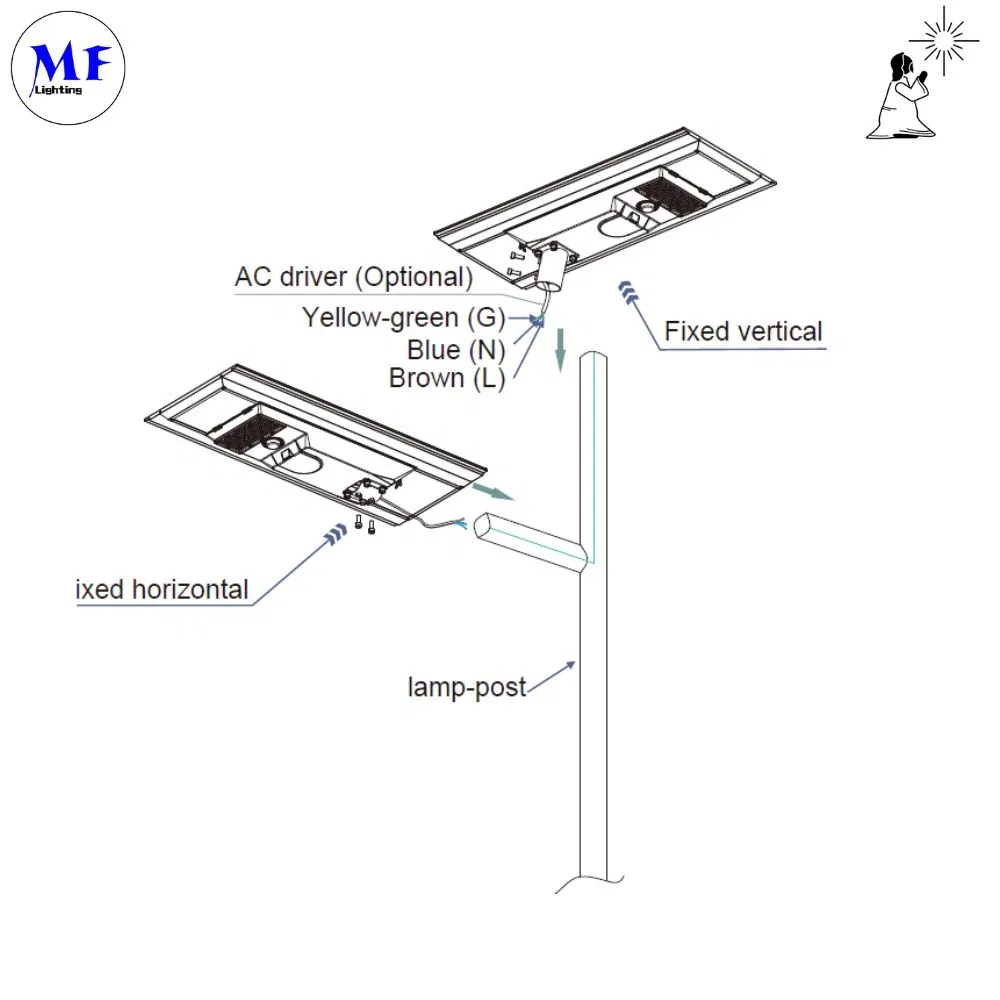

The integrated die-casting molding structure and tool-free access is of integral prevention and makes it easier to install and maintain. Adjustable angle and vertical or horizontal installing available.

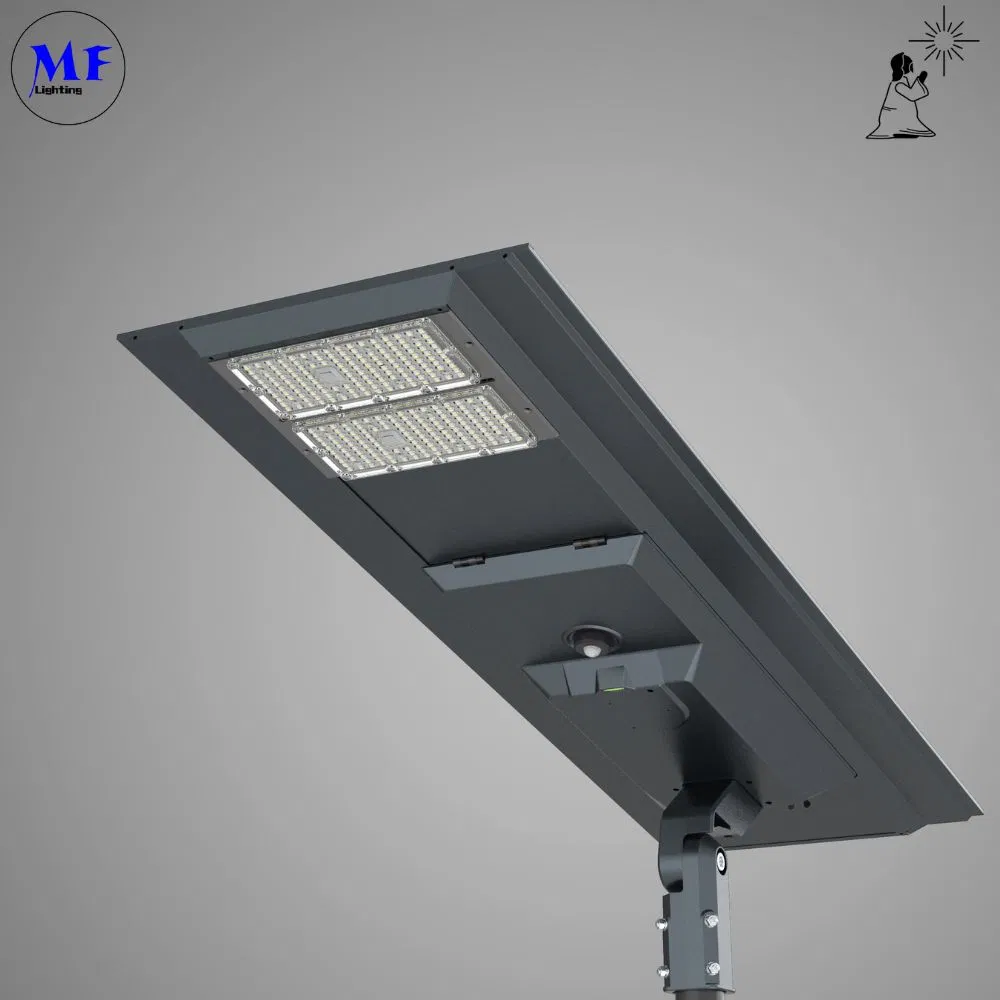

New Generation LEDs
New generation high bright SMD, combined with integrated lens and lower current, which increases lumen flux by 10% and decreases light attenuation.
Secondary Optical Design
Specifically for solar street lights, maximizing uniformity and illumination while decreasing dispersion.
MPPT Charging Technology (Optional)
Improves energy utilization by 15% - 20% compared to ordinary controllers.
High Performance Battery
A-level batteries with protection plates and temperature control. Safer and longer cycling life. Li(NiCoMn)O2 / LiFePO4 options.

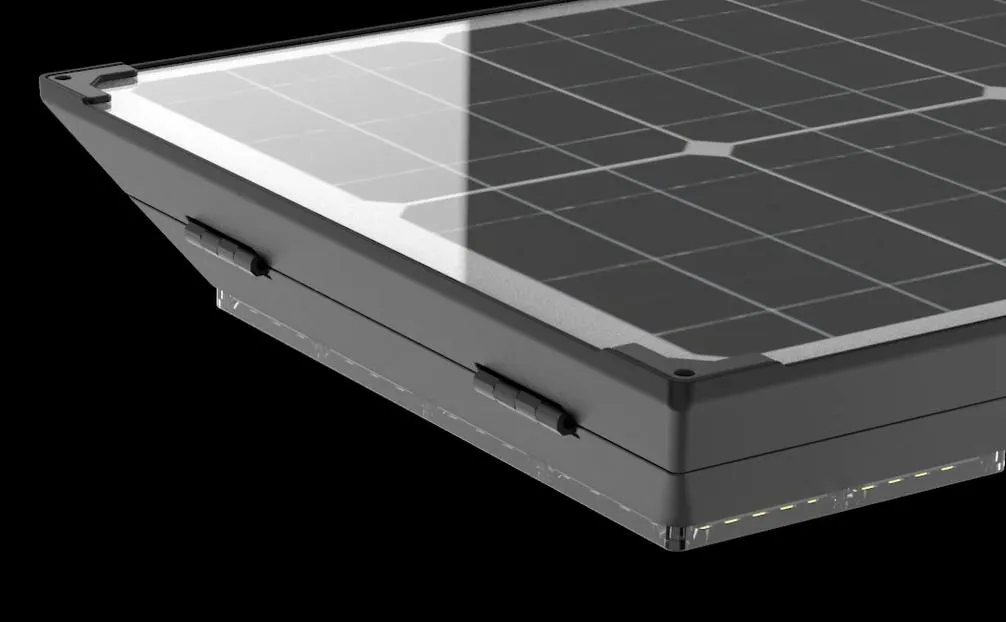

High Efficiency Solar Panel
Top quality monocrystalline silicon wafer with upgraded light transmittance and anti-aging performance.
| Specification | Details | ||
|---|---|---|---|
| Color Temp | 4000±300K (WW) | 5000±300K (NW) | 5700±300K (CW) |
| CRI | ≥70 | ||
| Material | ADC12 , AL6063, PC | ||
| Control System | PWM / MPPT / AC input | ||
| Battery Type | LiFePO4 | ||
| Power Range | 20W ~ 120W | ||
| Luminous Efficiency | 100 lm/W (Up to 175lm/W) | ||
| Installation Height | 4 ~ 8m | ||
| Model No. | Power | Lumen | PV Panel | Battery | LED Qty |
|---|---|---|---|---|---|
| MFSL-S5H-XXX020 | 20W | 2000 lm | 35W | 154 Wh | 60 pcs |
| MFSL-S5H-XXX040 | 40W | 4000 lm | 43W | 230 Wh | 60 pcs |
| MFSL-S5H-XXX060 | 60W | 6000 lm | 62W | 384 Wh | 144 pcs |
| MFSL-S5H-XXX080 | 80W | 8000 lm | 94W | 538 Wh | 144 pcs |
