Product Description

i

Product Overview

Model NO.
BRZ-60W-S
Material
Aluminum Alloy
Application
Square, Highway, Garden, Parking Lot
IP Rating
IP66
Voltage
18V
LED Brand
3030 Chips
Capacity
100,000 PCS/Year
Certification
CE, RoHS, TUV-Sud, ISO9001
⚙

Technical Parameters

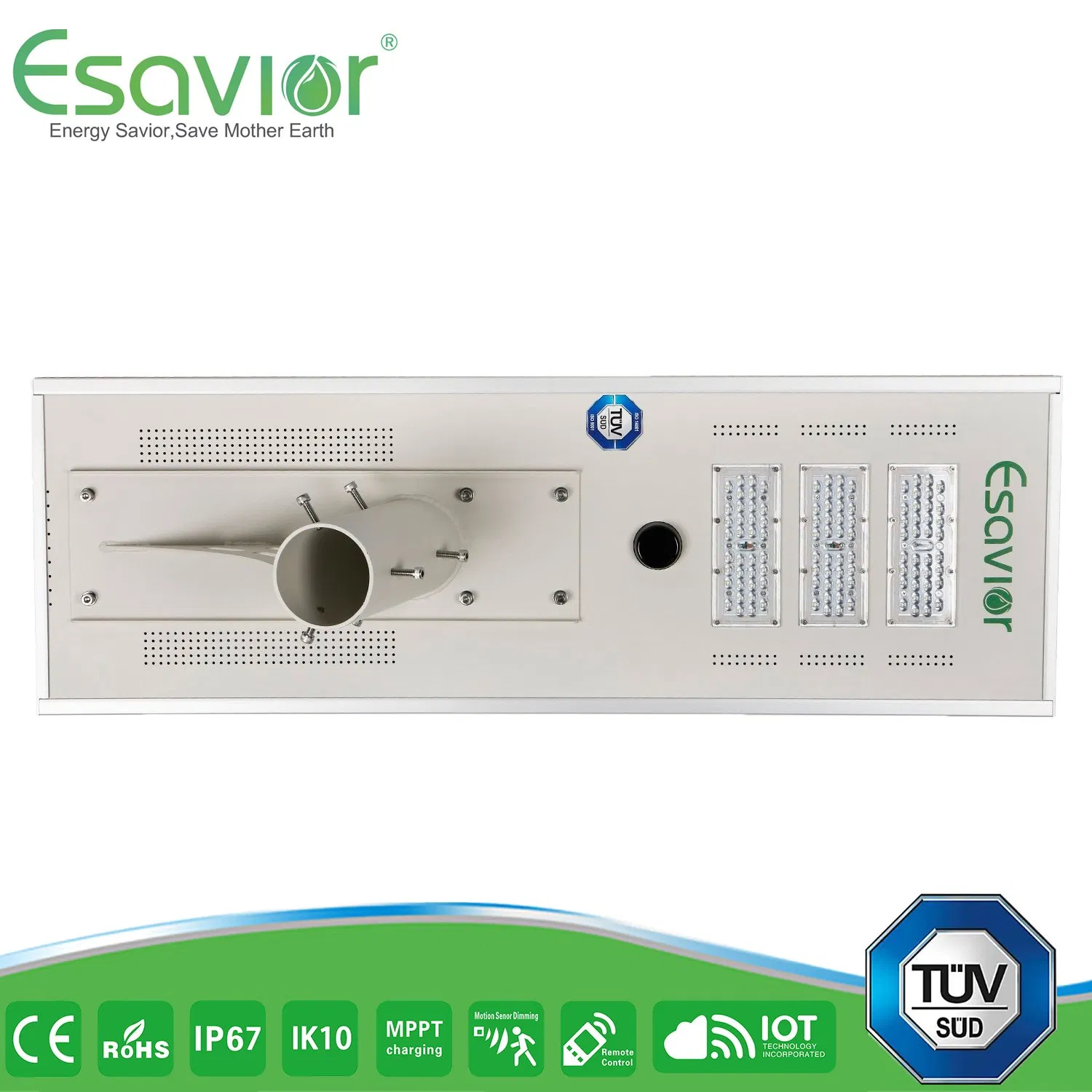

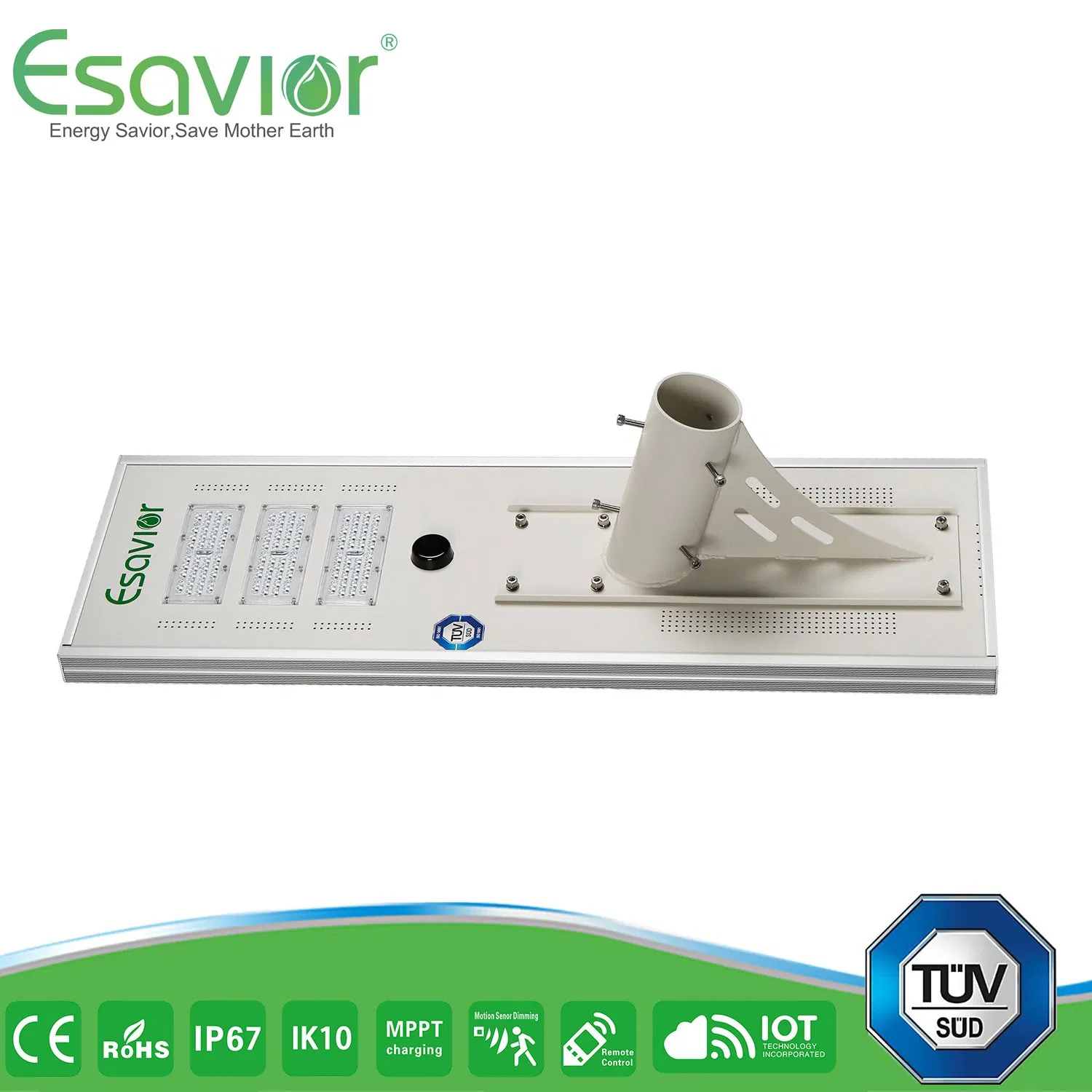

BRONZE Series Specification Model: ISSL-BRZ-60W-S

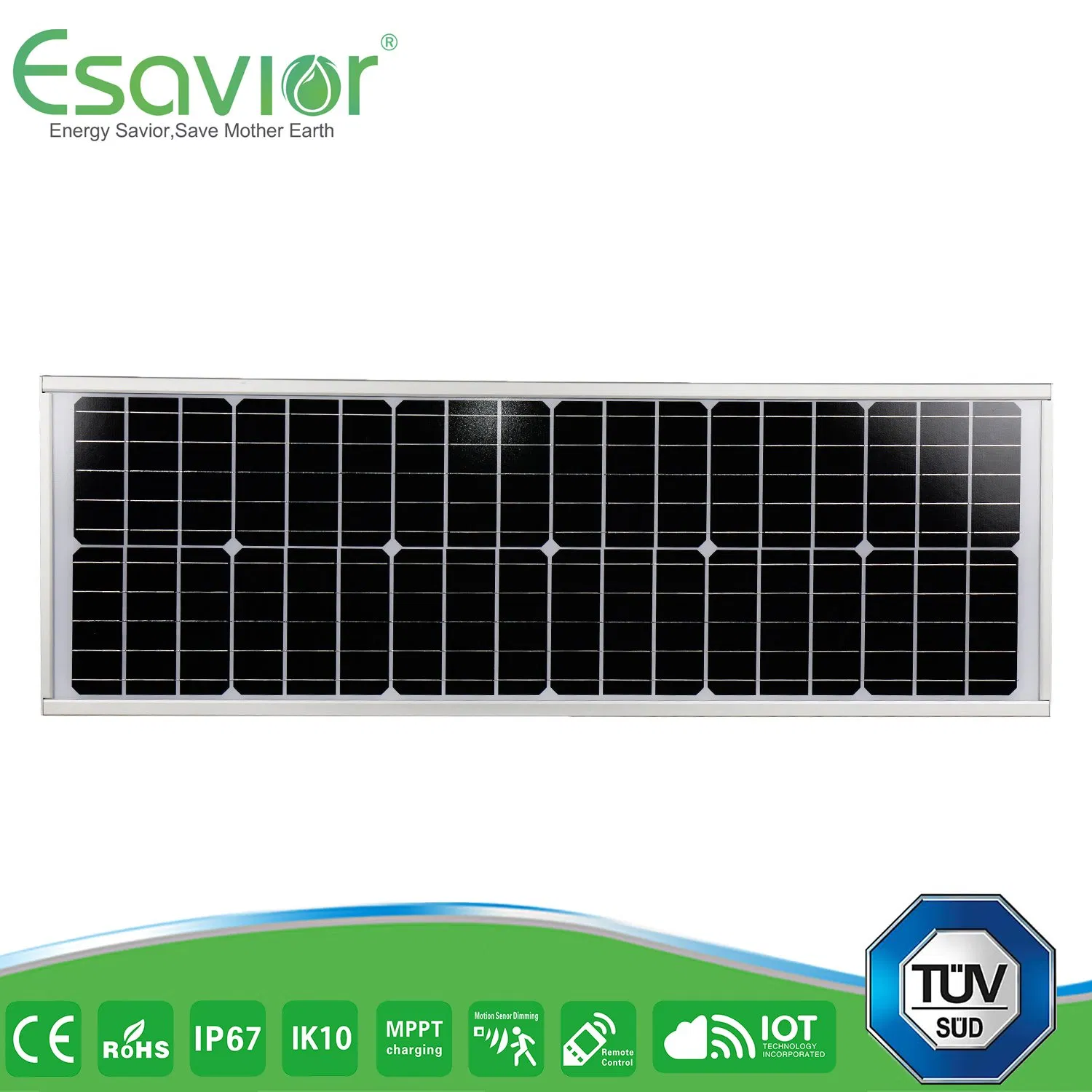

Solar Panel Power 18V/70Wp (Monocrystalline PV), 25 years life-span
Working Life 25 years
Battery Capacity/Type 12.8V/30AH (384.00WH) / LiFePO4 Lithium
Life-span 8+ years (3000 cycles @60% DoD)
Controller Type MPPT / IP68 (IoT Online Monitoring Optional)
Sensor Microwave Radar (PIR & Timing optional)
LED Source Rated Power 12V/ 60W (36 LEDs x 3 modules)
Lumens 5400-6000lm (195lm/W Efficiency)
Viewing Angle 140° (Customizable)
Charging Full Charge Time 6 hours (STC)
Discharge Dim Mode >60 hours
Bright Mode >12 hours
Environment Working Temp. -30ºC ~ +80ºC
Installation Mounting Height 7~8m / Space: 30~35m
📷

Product Presentation

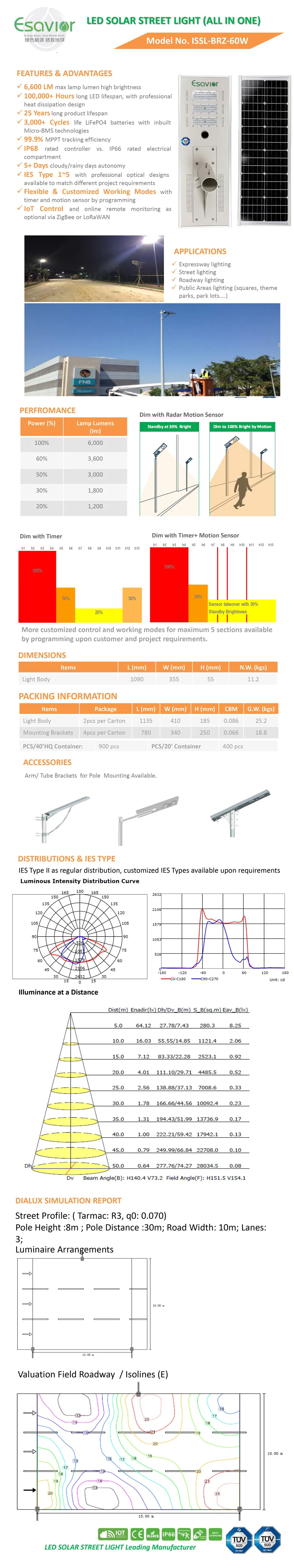

Detailed View
Certification Showcase
Factory Overview
★

Key Highlights

  • Multiple patents awarded for Solar Street Lights and IoT Monitoring Systems.
  • ISO 9001/14001 certificates awarded by TUV-SUD.
  • Full compliance with IEC 60598, IES TM-21, and IES RP-27.3-07 standards.
  • Field-tested and praised in projects across over 100 countries.
  • Modern 3000 sqm production facility with advanced global Solar R&D and Inspection Center.
  • Wide range of solar solutions including street lights, garden lights, and flood lights tailored to customer needs.
?

Frequently Asked Questions

What is the expected lifespan of the solar panel and battery?
The monocrystalline solar panel has a design life of 25 years, while the LiFePO4 lithium battery offers over 8 years of life (approx. 3000 cycles at 60% DoD).
How long does it take to fully charge the light?
Under Standard Test Conditions (STC), it takes approximately 6 hours of sunlight to reach a full charge.
Can this light operate in extreme weather conditions?
Yes, the light is designed with an IP66 rating and can operate efficiently in temperatures ranging from -30ºC to +80ºC.
What is the benefit of the Microwave Radar sensor?
The Microwave Radar sensor allows for intelligent motion detection, switching between Bright Mode (>12 hours duration) and Dim Mode (>60 hours duration) to maximize energy efficiency.
What mounting options are available for this series?
The light supports various mounting brackets including Post Top, Arm, Arm Tube, and Pole Clamps, suitable for installation heights of 7-8 meters.
Does the system support remote monitoring?
Yes, the MPPT controller has an optional IoT Online Monitoring feature for real-time performance tracking and management.
