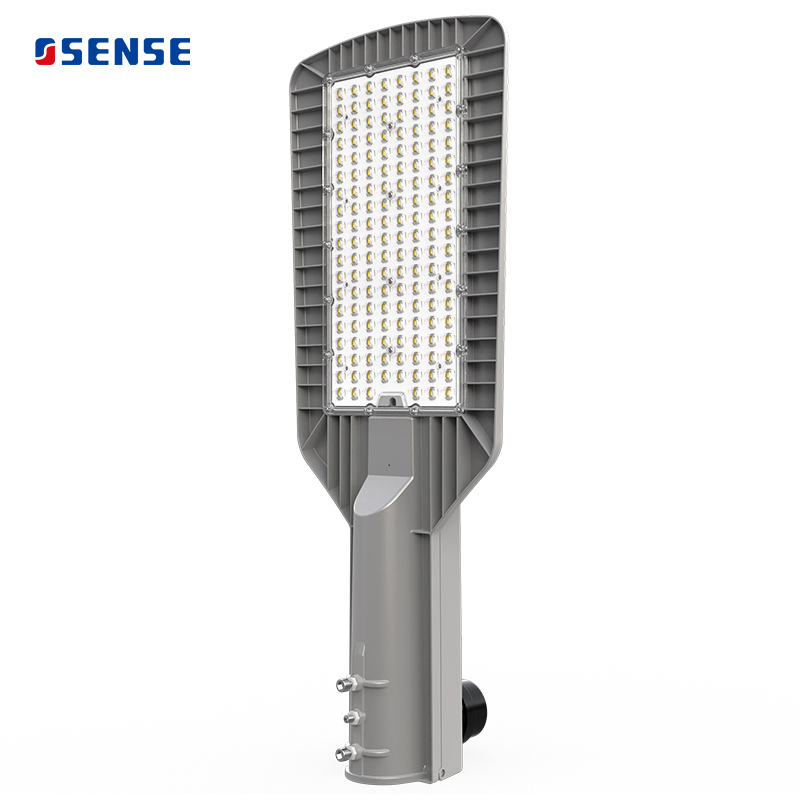

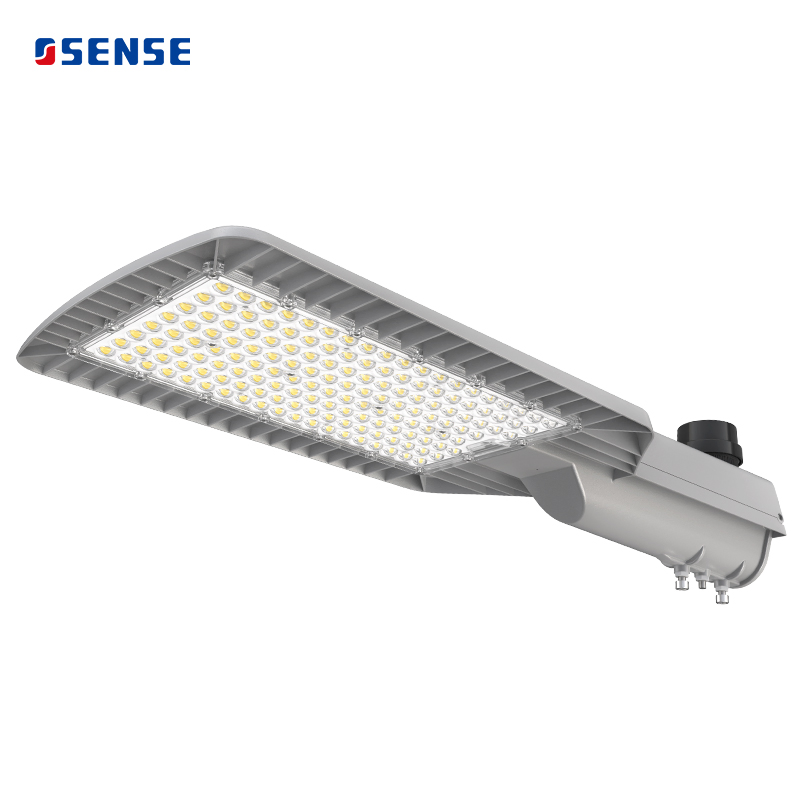

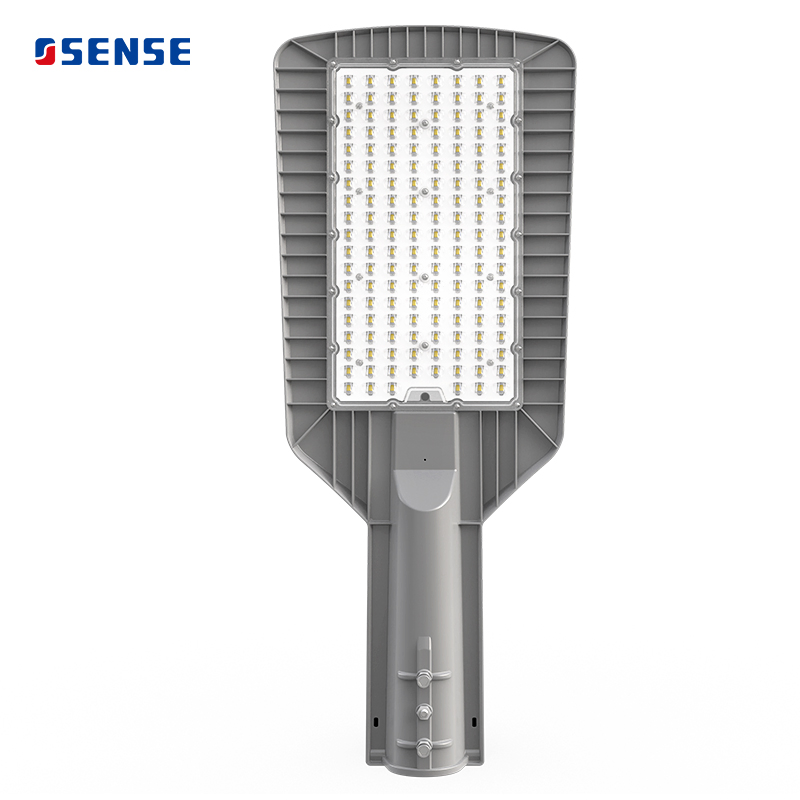

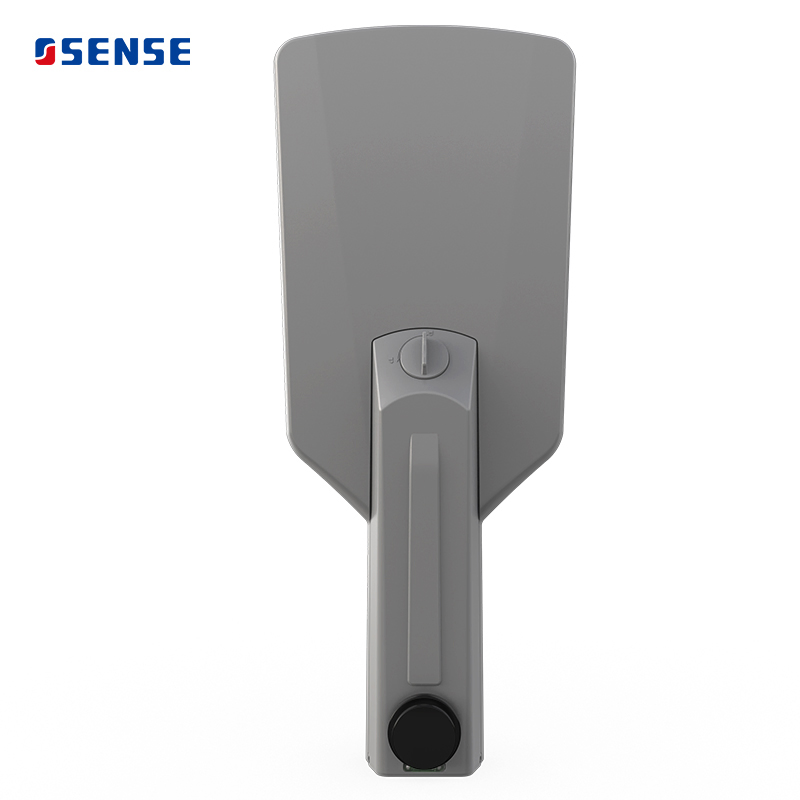

Manufacturer Supplier Factory ODM OEM 20-120W Power Saving IP66 Light Waterproof Solar Post Top Garden Light Housing LED Street Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
SWL-BY200W
Lamp Body Material
Aluminum
Power
60W
IP Rating
IP66
Input Voltage
100-277V
LED Chips Brand
CREE/OS RAM/Nichia/Lumileds/Bridgelux
Driver Brand
Moso/Sosen/Meanwell/Inventronics
Operating Temp
-30℃/+45℃
CRI
>70 / >80
Warranty
3/5/7/10 Years
IK Rating
08
Standard Colour
Ral9007 Gray
Key Features
Patented private mold with integrated Die-casting.
High-efficiency coating passing 500 hours salt spray test.
Tool-free power cavity opening for easy maintenance.
Detachable design with fast turn-off power protector.
High efficiency up to 170lm/w optional.
Equipped with DALI, 0-10V / 1-10V dimming interfaces.
Long life span of over 50,000 Hours.
Cost-effective lighting solution for fast ROI.
Technical Parameters
GENERAL INFORMATION ELECTRICAL INFORMATION
Mounting Module Post top or side entry 42-60Φ / 76-80Φ Electrical Class Class I
Tilt Angles 0, ±5, ±10, ±15 Nominal Voltage 100v-277vac 50/60Hz
Lens Options Type ‖-M/S Power Factor ≥0.95@230Vac
Surge Protection 10kV / 20kV (Optional) Control System DALI; 1-10v; 0-10v; Microwave
Product Configuration Scheme
Model No. Power LED Brand Efficiency Luminous Flux Dimensions (mm)
SWL-BY30W30WCREE135-150lm/w4050-4500lmL440*W195*H169
SWL-BY60W60WCREE135-150lm/w8100-9000lmL440*W195*H169
SWL-BY100W100WCREE135-150lm/w13500-15000lmL550*W245*H172
SWL-BY150W150WCREE135-150lm/w20250-22500lmL650*W280*H173
SWL-BY200W200WCREE135-150lm/w27000lmL780*W320*H174
Product Details Gallery

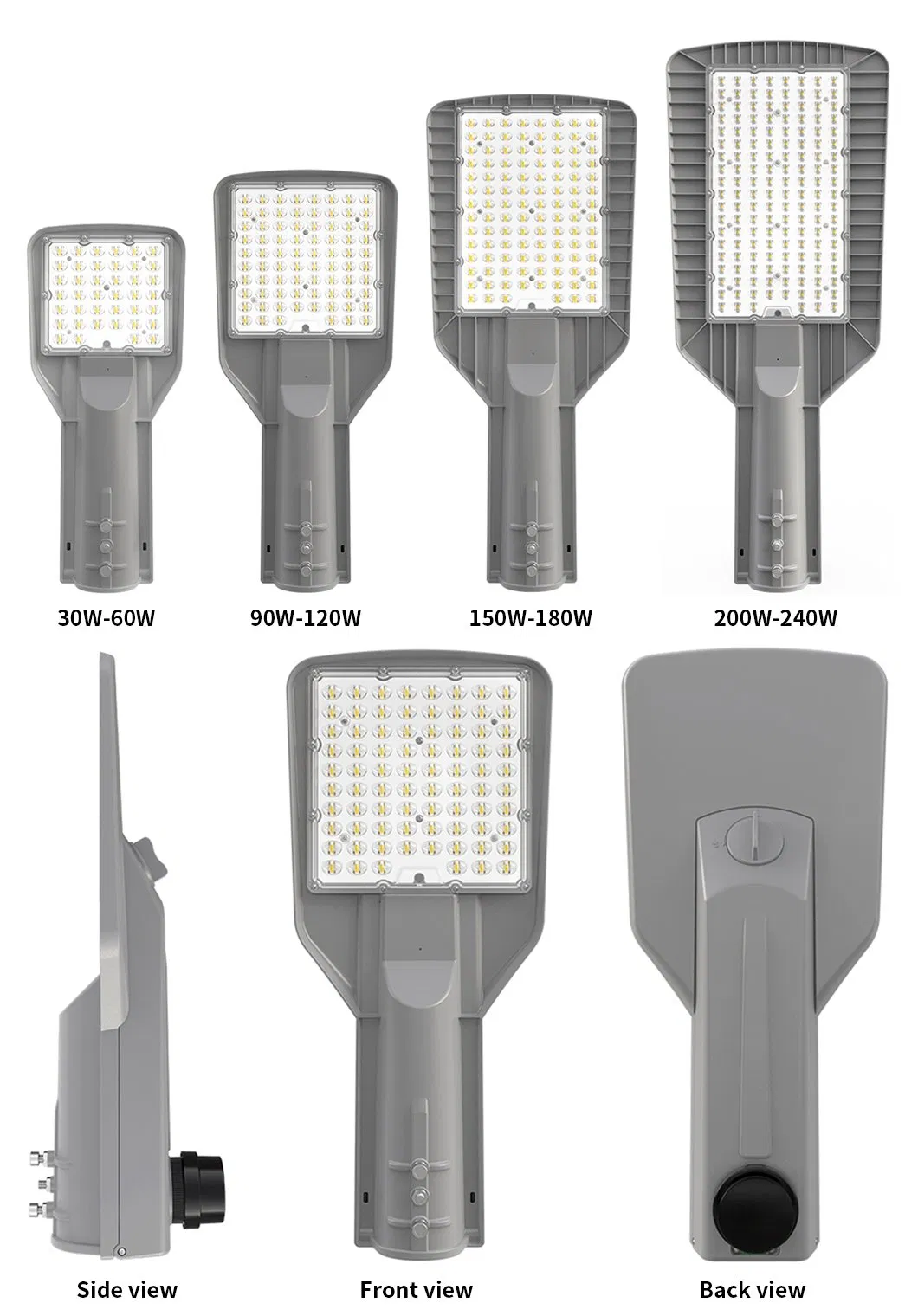

Street Light Detail 1

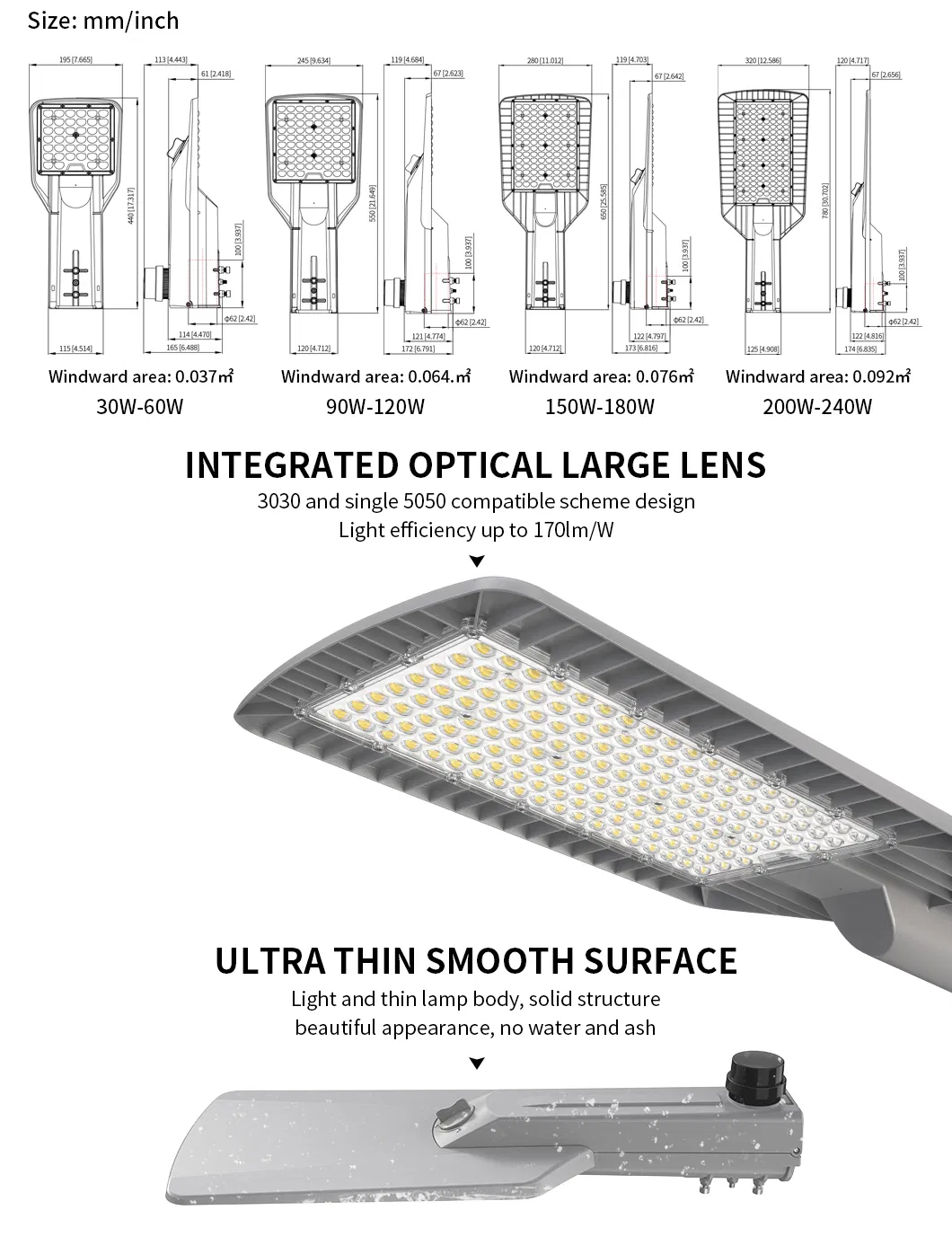

Street Light Detail 2

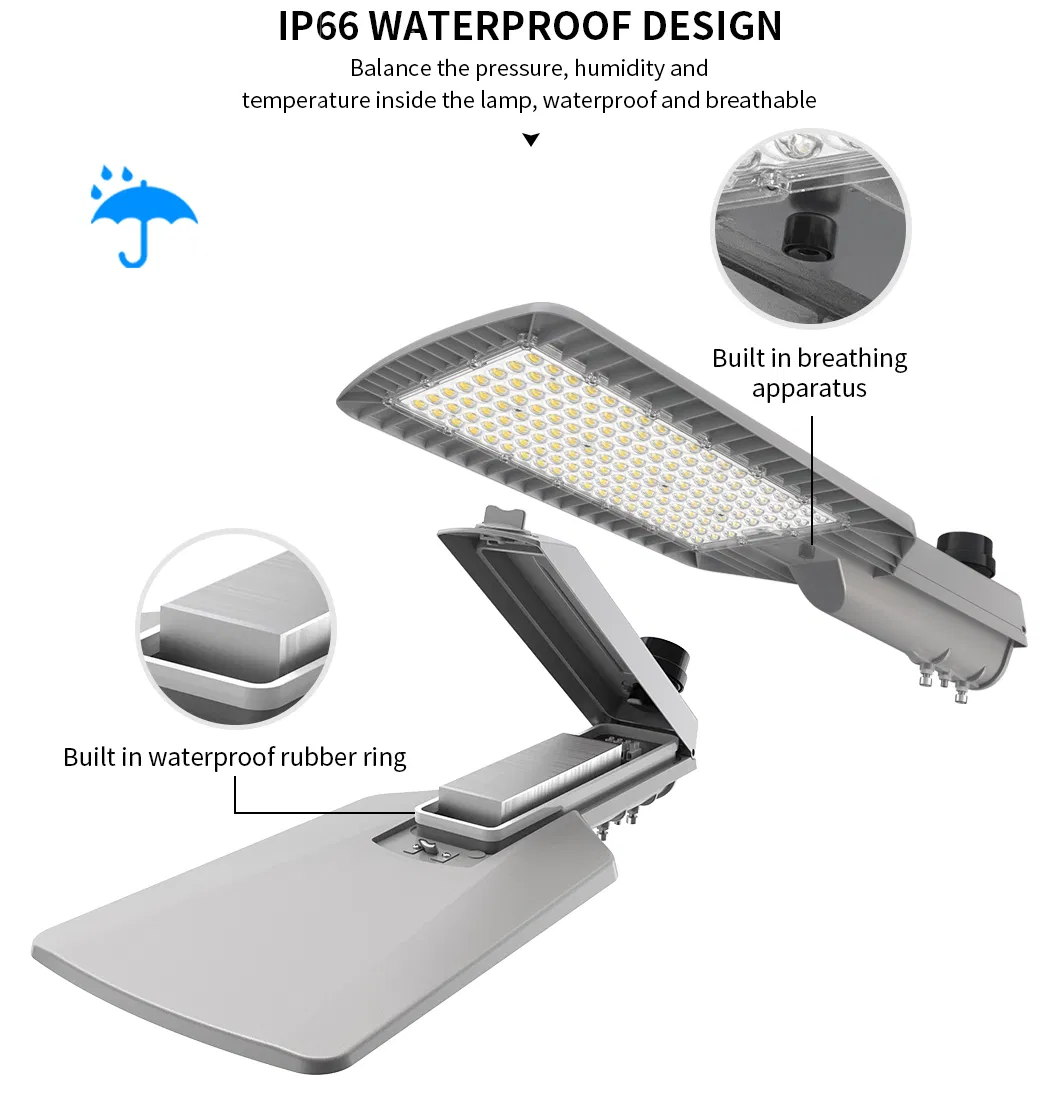

Street Light Detail 3

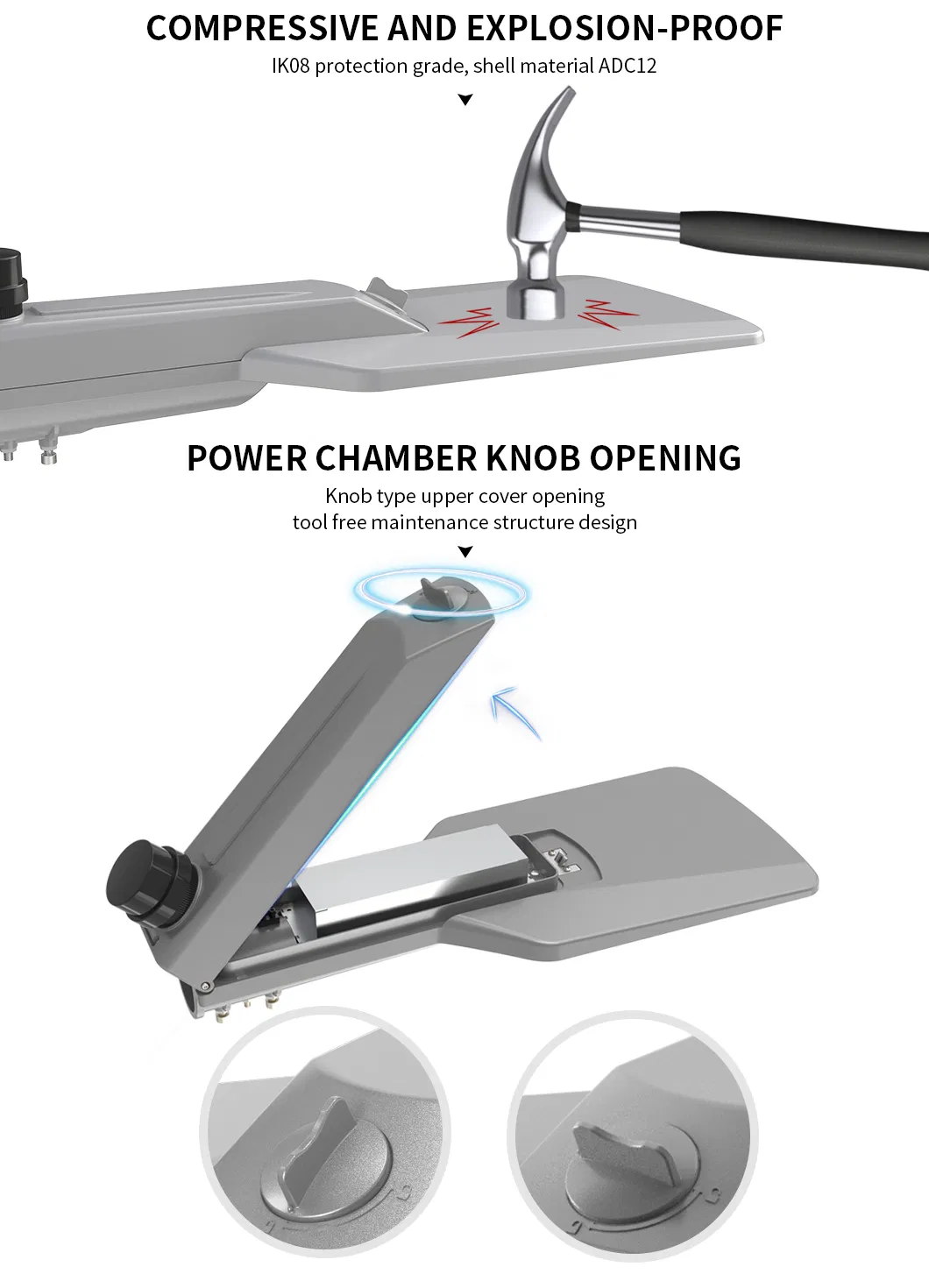

Street Light Detail 4

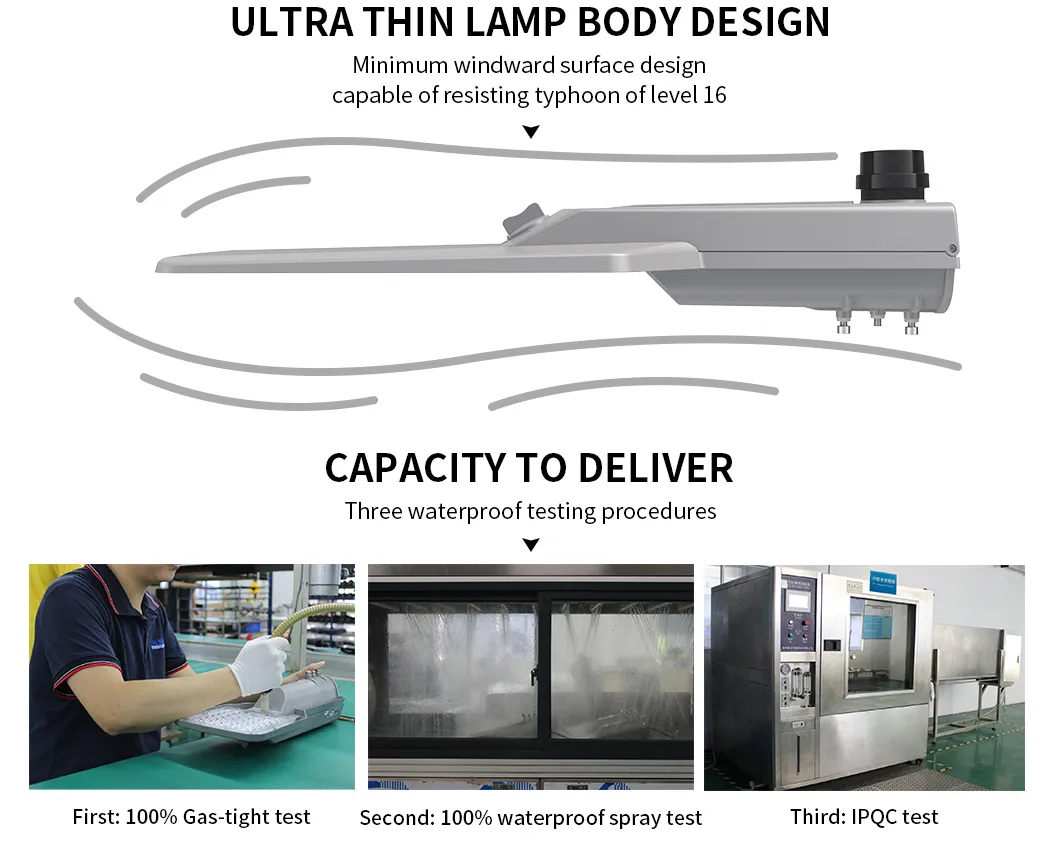

Street Light Detail 5

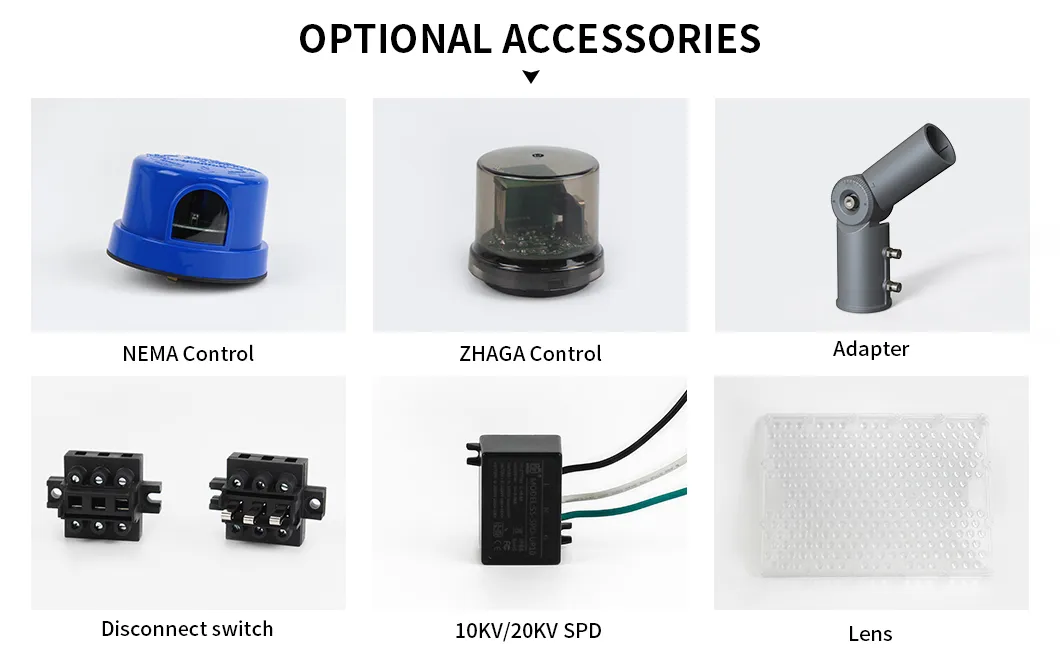

Street Light Detail 6

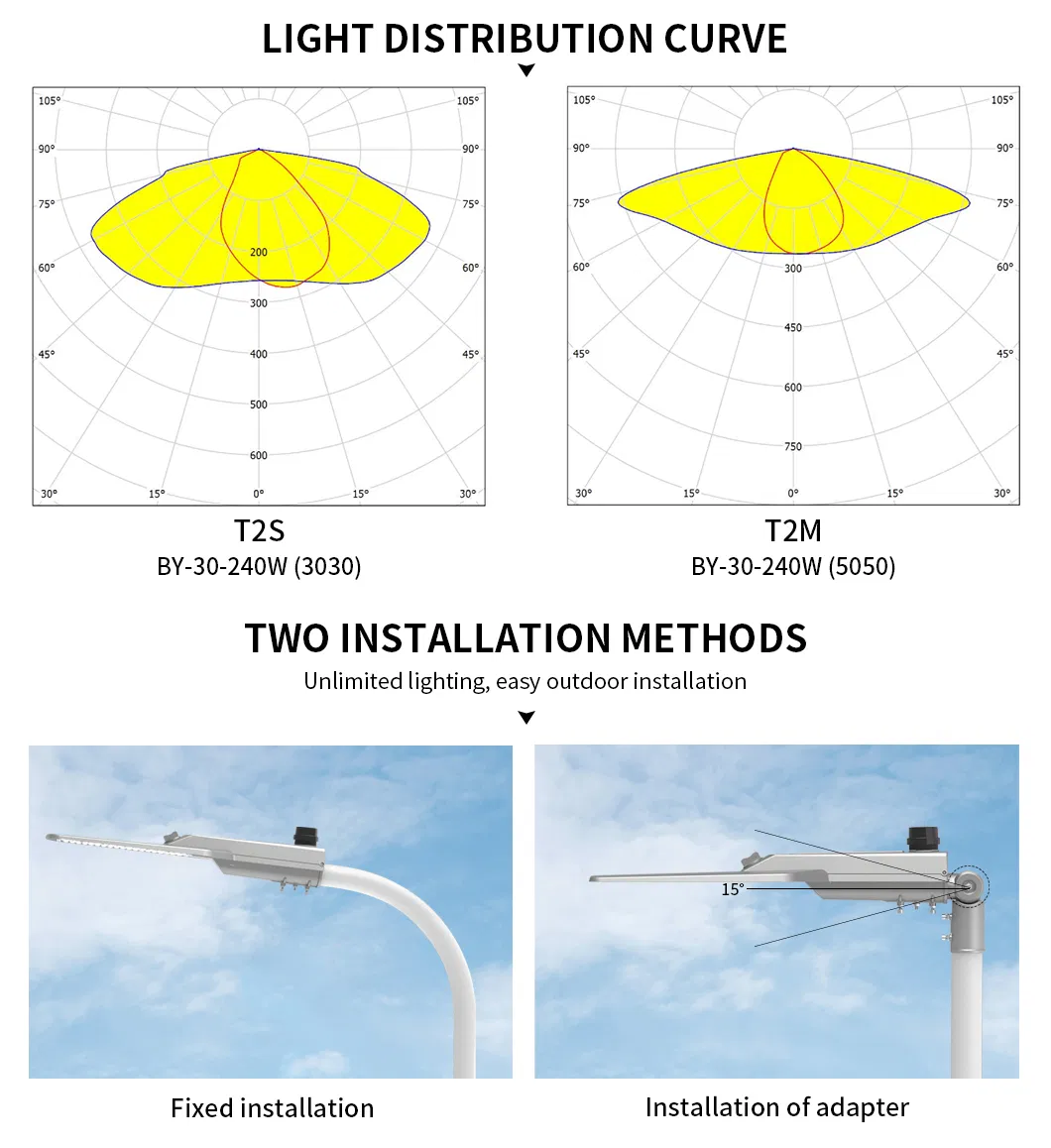

Street Light Detail 7

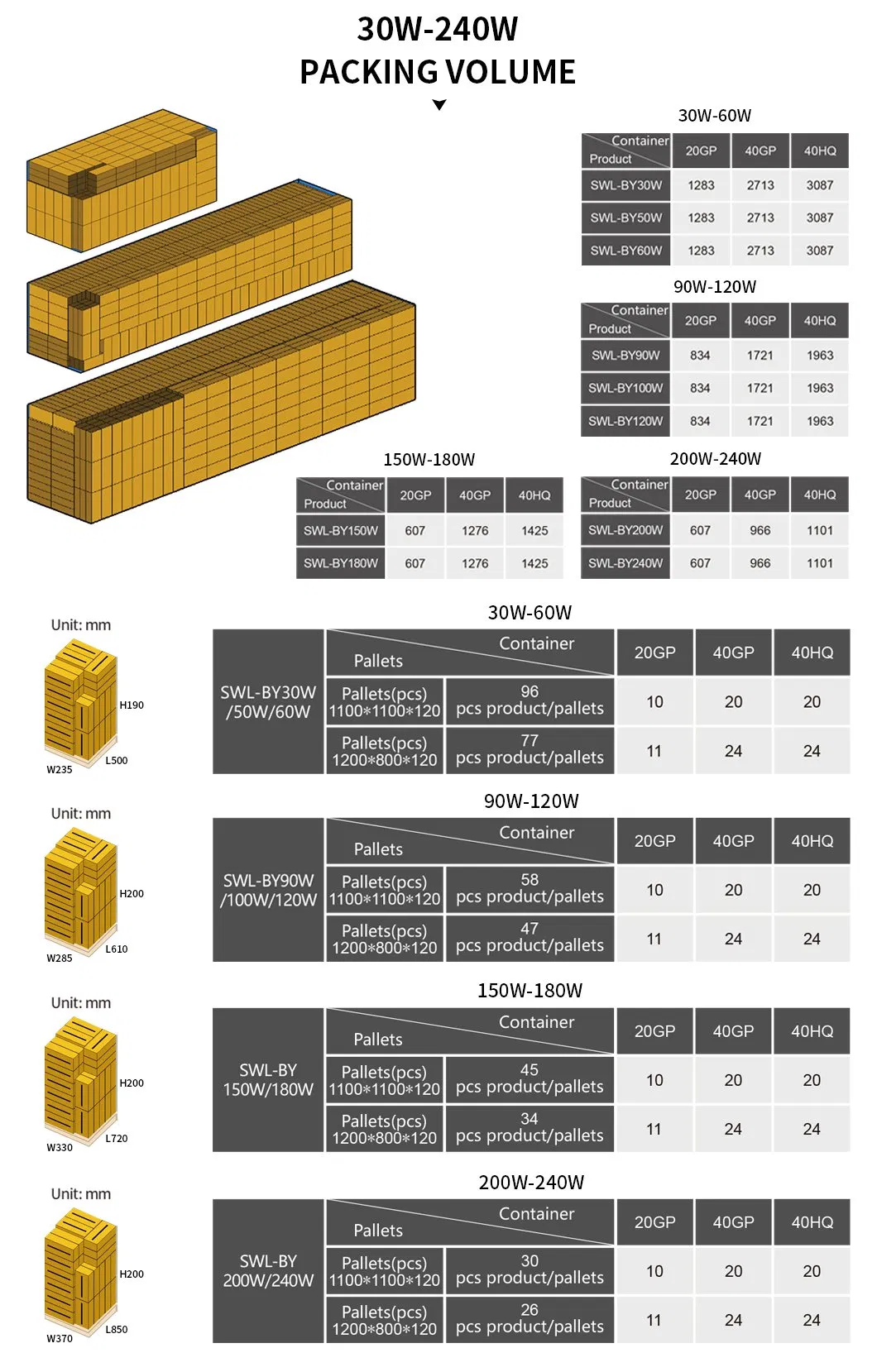

Street Light Detail 8
Street Light Detail 9
Street Light Detail 10
Street Light Detail 11
Street Light Detail 12
Frequently Asked Questions
What certifications do your street lights have?
Our products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved. They also come with IP66/IP67, IK08-IK10, and LM79/LM80 test reports.
Can I customize the products with our own logo?
Yes, we provide comprehensive OEM services, allowing you to have your logo on both the products and the packaging.
What is the standard warranty period?
We offer a 5 to 7-year warranty depending on specific project requirements and customer requests.
What is the typical lead time for orders?
Samples are usually ready within 3-7 days, while mass production takes approximately 10-20 days depending on the order quantity.
Do you support ODM requirements?
Yes, we fully support both OEM and ODM requirements to meet different application and technical specifications.
How do you handle quality control and faulty products?
Our products are produced under a strict quality control system with a defect rate below 0.1%. For any faulty units within the warranty period, we provide replacements or repair solutions based on the actual situation.
