Design Concept
To address the challenges of pedestrian crossings and the need for non-disruptive installation, this system provides a comprehensive wireless signal solution. It eliminates the need for road breaking and external power cabling, making it ideal for intersections where electricity access is difficult.
⚙️System Composition:

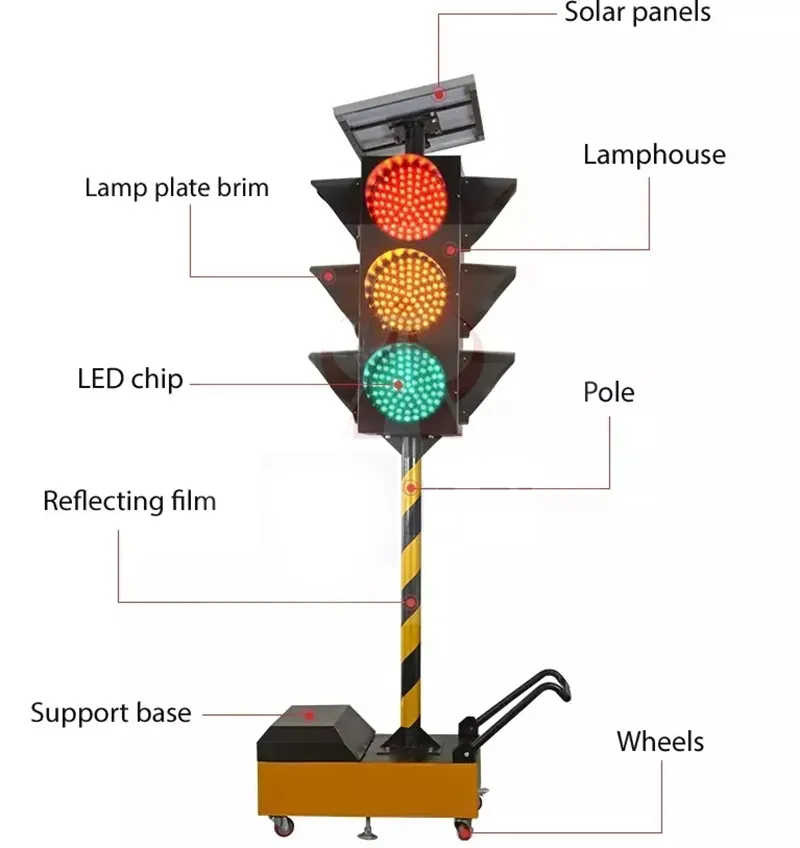

The system integrates high-quality components including photovoltaic panels, batteries, charge/discharge controllers, crossing buttons, 5-channel signal controllers, wireless signal converters, pedestrian signals, and motor vehicle signals.
This system is perfectly suited for "one-word" pedestrian crossing intersections. By utilizing wireless signal processors, the synchronization of buttons and signal machines is achieved across both sides of the road, ensuring safe and efficient pedestrian movement.
| Parameter | Details |
|---|---|
| Product Material | Sheet metal (surface with paint) + PC |
| Waterproof Level | IP65 |
| Operating Temperature | -25ºC ~ 65ºC |

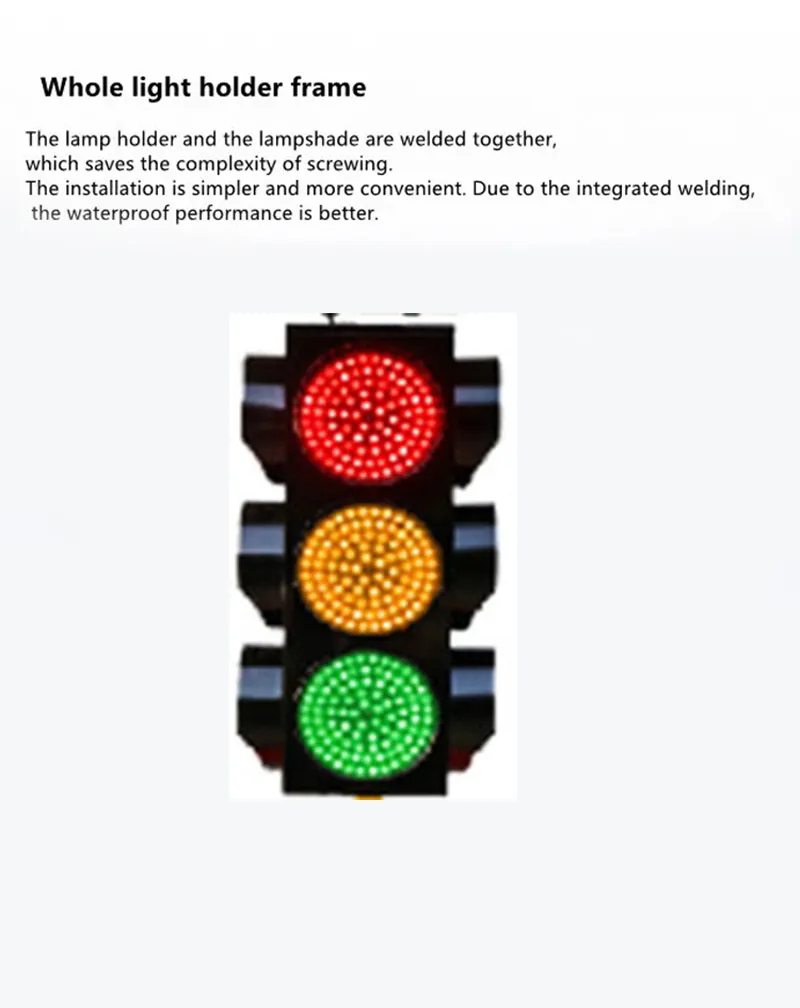

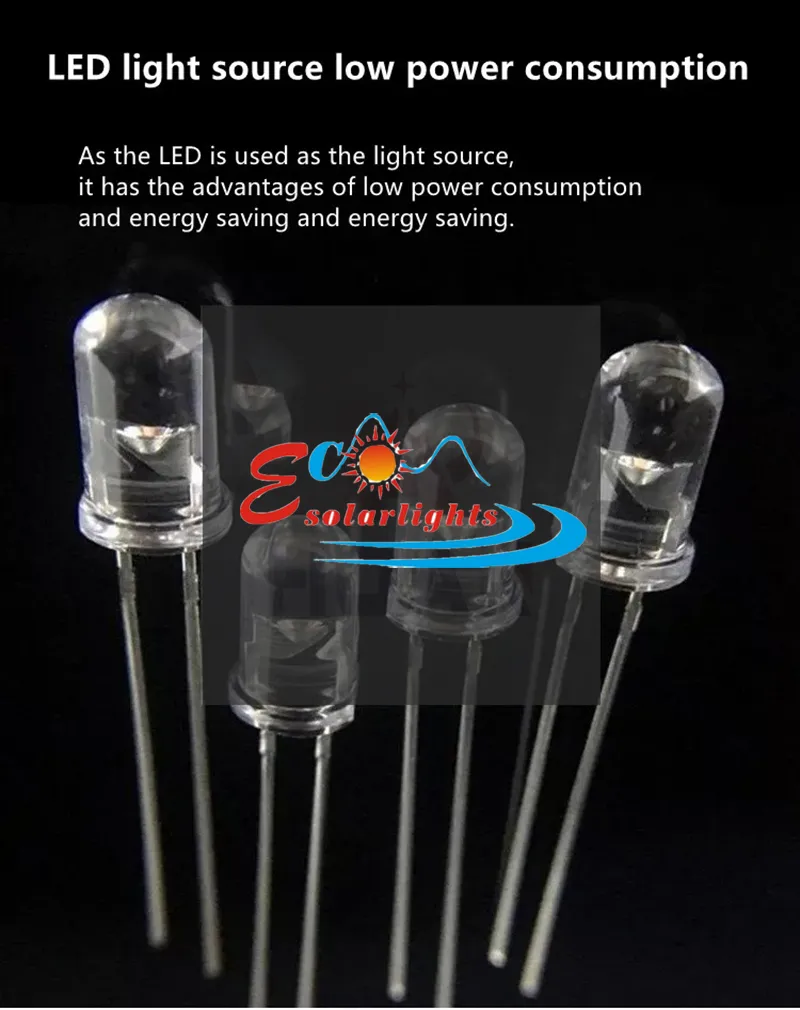

| LED Color | Red, Yellow, Green |
| Lamp Diameter | φ300mm |
| LED Life Expectancy | Over 100,000 hours |
| Visual Distance | >1000 meters |

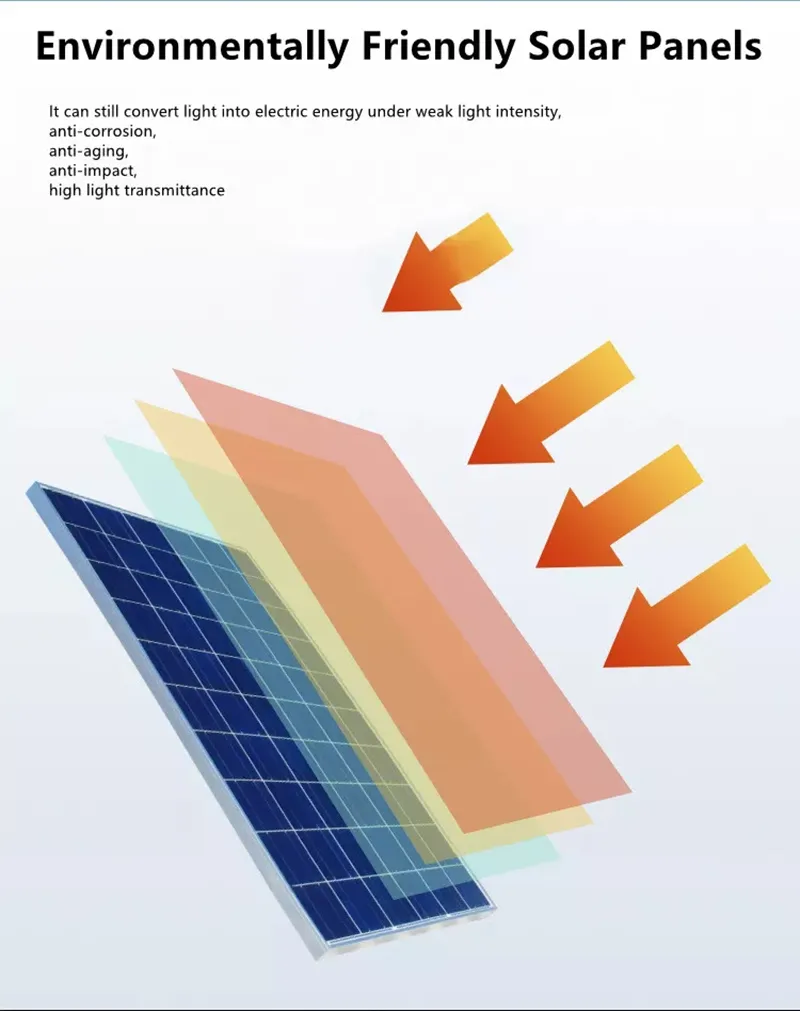

| Power Supply | Solar Module (12V50W) |

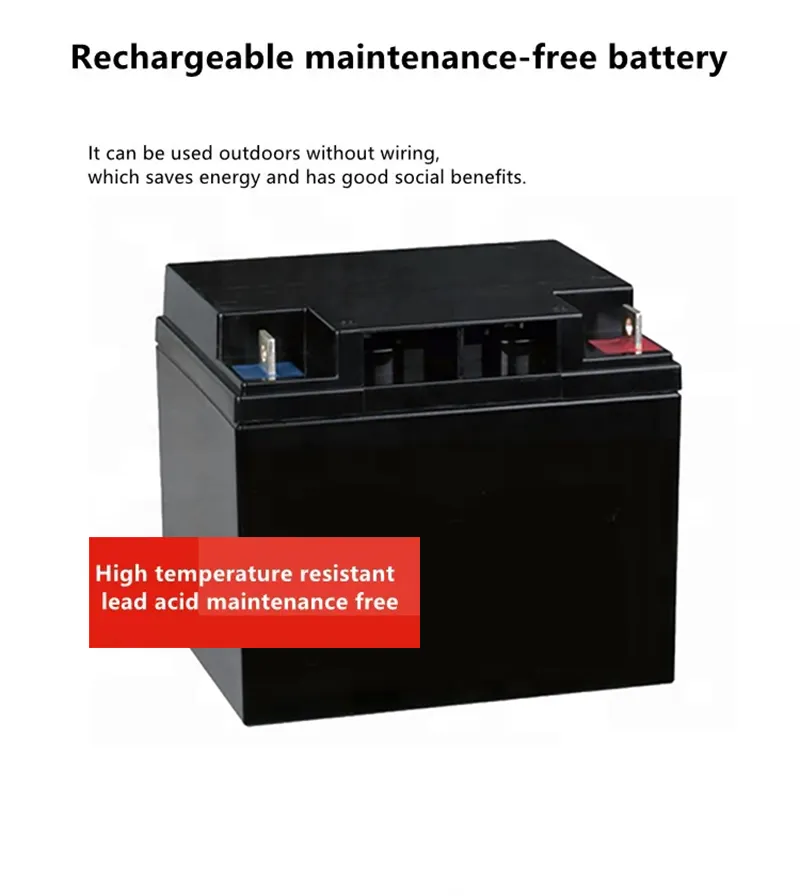

| Battery Type | 12V / 100AH |
| Working Voltage | DC12V |
| Lighting Time | 200H after full charge (72H after 8H charge) |
